AFF 3596 5-1/2 Ton Low Profile/Long Reach Air Lift

American Forge and Foundry Profile/long reach air lift is designed for heavy-duty low-profile vehicles that require a longer reach in order to be securely lifted at the vehicle front axle or frame and can also be used on the bumper. The scissor action design and full shop air operation (160 PSI) provide more lift height under low profile vehicles. Using its multiple saddle sizes and adjustments along with its standard drop-axle adapter it can lift from as low as 6-1/2" to a high 53-1/2" with a long 48" forward reach. Specification: Capacity (Tons): 5.5; Low Height: 6.5"; High Height : 53.5"; Length: 77"; Base Width: 23"; Overall Height: 70".

• 5.5 Ton Long Reach Air Lift: AFF's Low Profile Long Reach Air Lift is designed to lift lift at the front axle, frame or bumper
• Adjustable: 2 saddle sizes which adjust between 23" and 45" widths
• Capacity: 5.5 Ton capacity achieved at 160 PSI

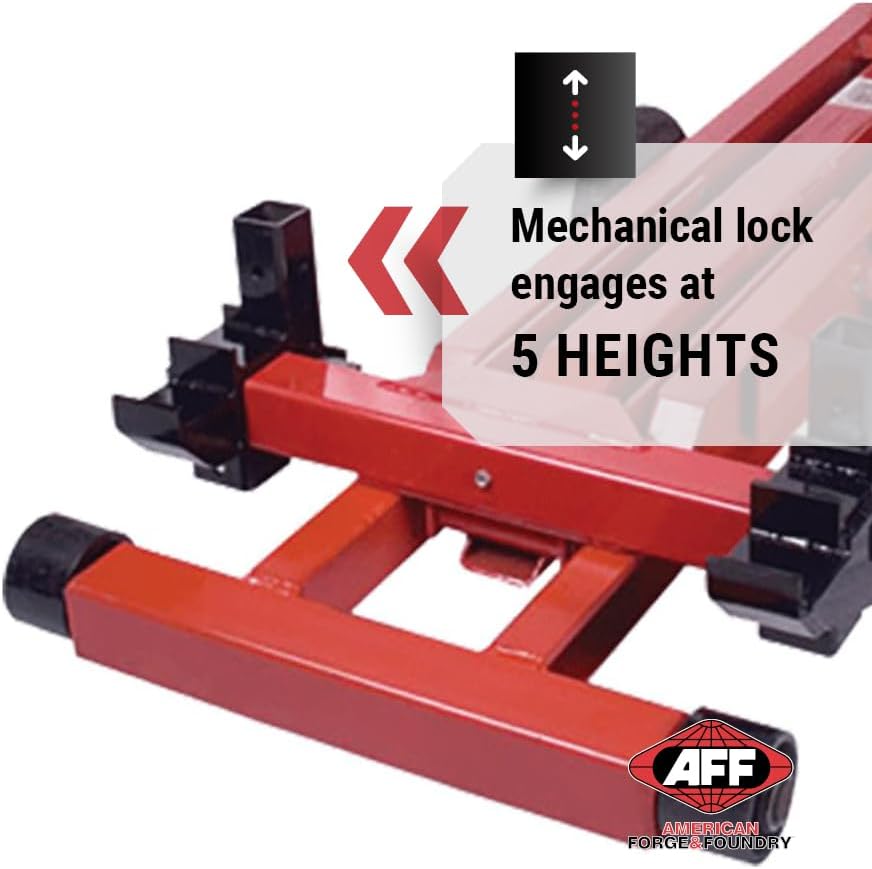

• More Control: Saddle arms are reversible to make room for low height loads. Three-way air valve for high-precision lifting and lowering control. Automatic mechanical safety lock activates at 5 preset positions
• Specs: 6.5" low height, 53" high height. 23" base width, 70" overall height. Ship weight: 638 lbs.
