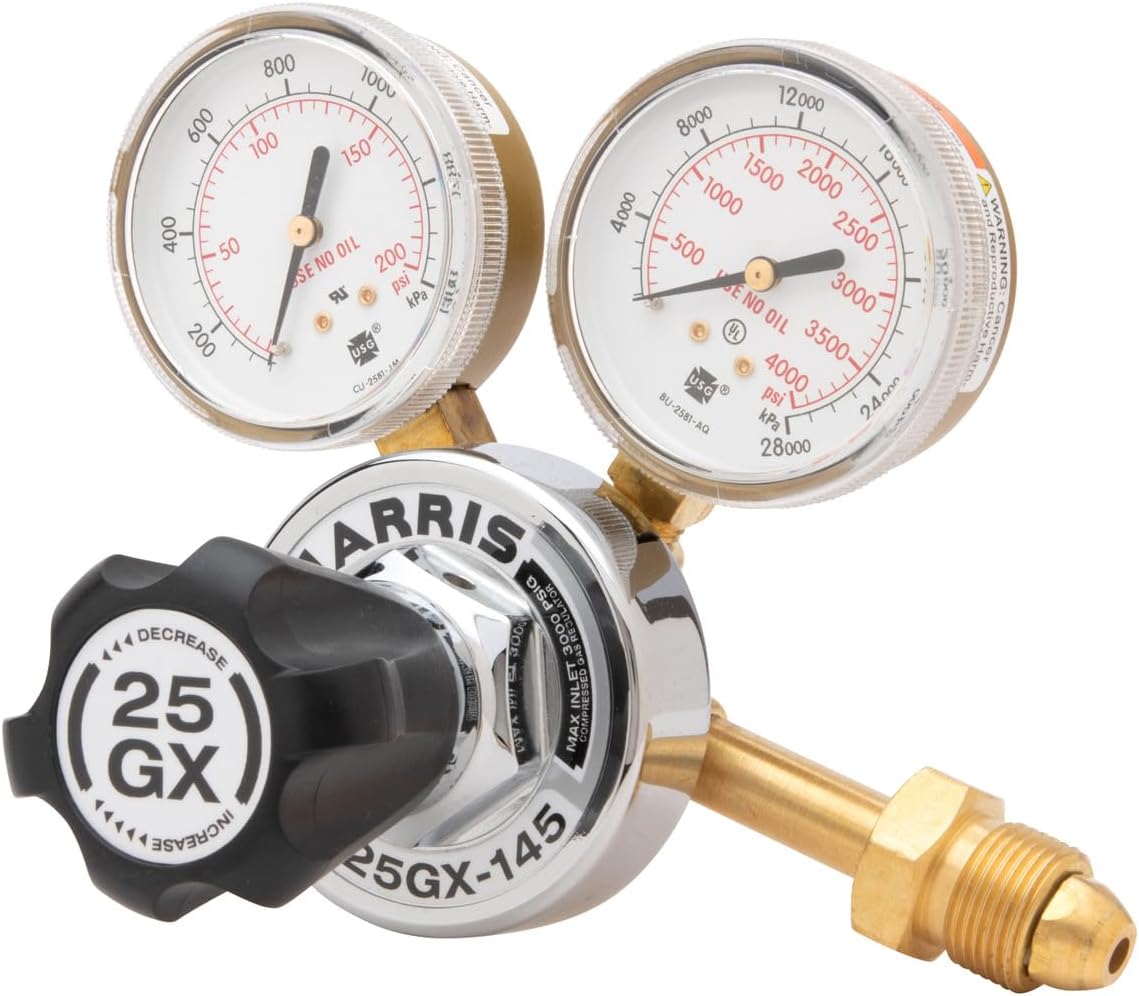

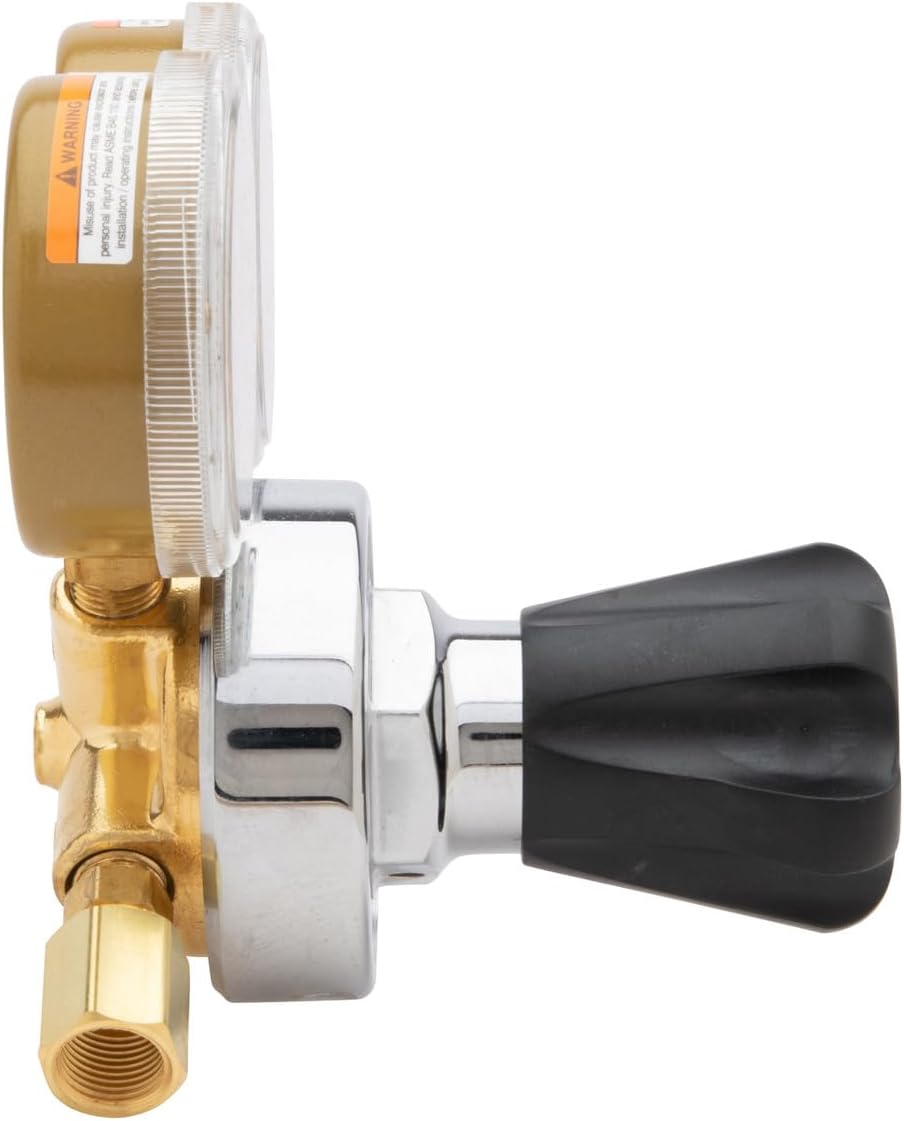

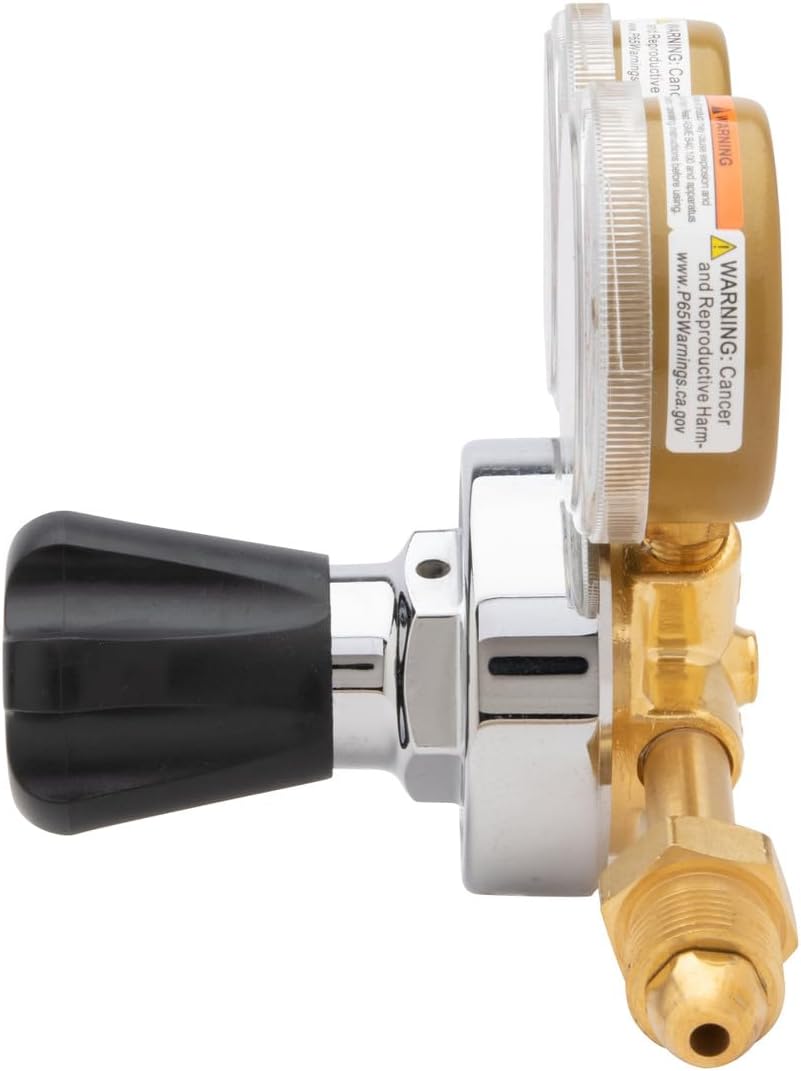

Harris 25GX-145-580 Pressure Regulator, 0 - 145 PSIG, Forged Brass
Product details
| Management number | 221429688 | Release Date | 2026/05/03 | List Price | $64.88 | Model Number | 221429688 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
The 25GX is designed to be the next generation workhorse of the Harris industrial regulator line. It features larger, easier to read gauges and an ergonomic adjusting knob that also shields the adjusting mechanism from contaminants. One-piece encapsulated seat prevents damaging particles from entering the high pressure valve seat 7 Year warranty 0.2 psig/100 psig pressure regulation 4000 psig supply pressure gauge 150 psig delivery pressure gauge Supplied with 5â„8-18 adaptor UB resistant, composite knob . Brand Name|Harris#MFR Part Number|25GX-145-580#UNSPSC|41112404#Item|Pressure Regulator#Type|Compressed Gas, Heavy Duty, Medium Duty, Single Stage#Series|25GX#CGA/Inlet Size|CGA 580#Outlet Size|9/16-18 RH#Delivery Pressure Range|0 - 145 psig#Gas Service|Argon, Helium and Nitrogen#Coefficient of Volume|0.17 Cv#Maximum Inlet Pressure|3000 psig#Gauge Type|2-1/2 Inch Steel Dual Scale#Body Material|Forged Brass#Bonnet Material|Chrome Plated Zamac 3#Diaphragm Material|Fiber Reinforced Neoprene#Nozzle Material|Brass#Seat Material|PTFE#Filter Material|10 micron Nickel Plated Sintered Bronze#Seat Return Spring Material|PH 17-7 Stainless Steel#Adjusting Knob Material|ABS#Outlet Material|Brass#Dimensions|4.99 Inch Length x 7.2 Inch Width x 5.43 Inch Height#Standard/Approvals|CGA E-4 Certified, UL Listed
| Size | 4.99 x 7.2 x 5.43 inches |
|---|---|
| Brand Name | HARRIS |
| Unit Count | 1.0 Count |
| Valve Type | Globe Valve |
| Item Weight | 0.01 Ounces |
| Thread Size | 9/16-18 RH |
| Thread Type | 5/8-18 |
| Manufacturer | Harris Regulator Products |
| Model Number | 25GX-145-580 |
| Exterior Finish | Brass, Bronze, Chrome |
| Number of Ports | 1 |
| Maximum Pressure | 3000 Pound per Square Inch |
| Specification Met | UL |
| Inlet Connection Type | Press |
| Outlet Connection Size | 0.56 Inches |
| Outlet Connection Type | 5/8-18 |
| Manufacturer Part Number | 25GX-145-580 |
