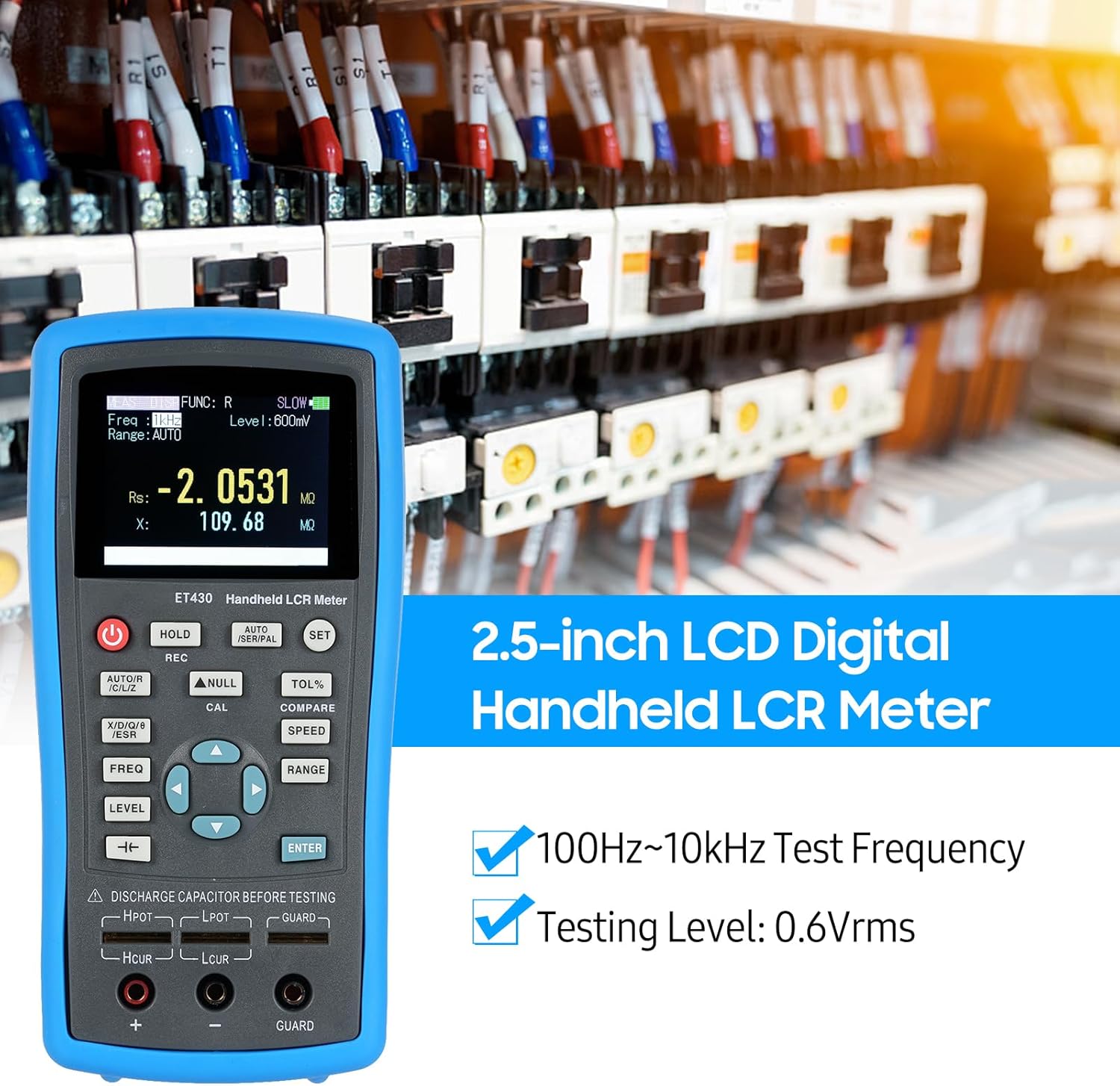

Irfora 2.5-inch LCD Digital Handheld 100kHz LCR Meter LCR Multimeter Tester for Inductance acitance Resistance Measuring 0.6 Vrms

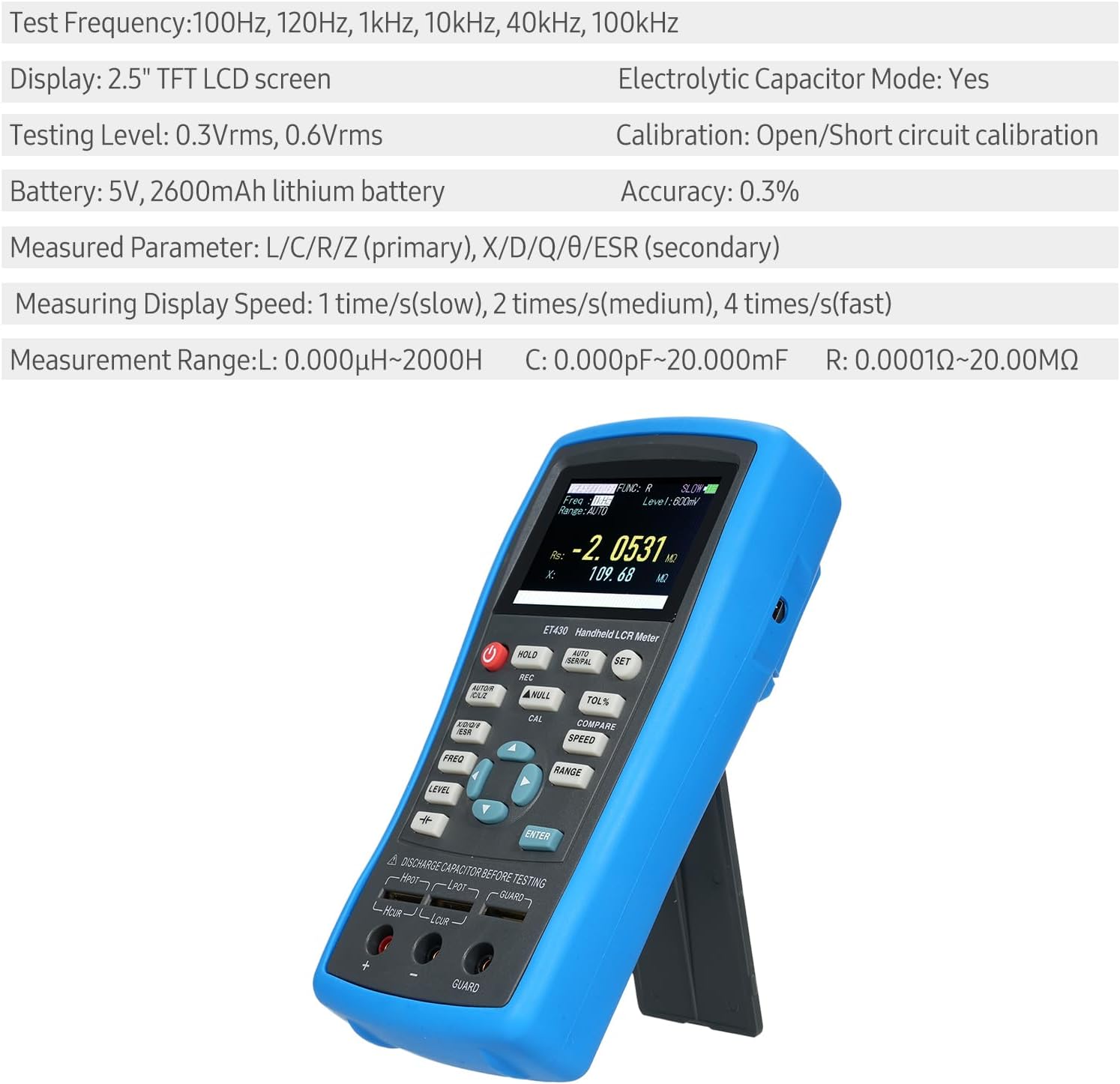

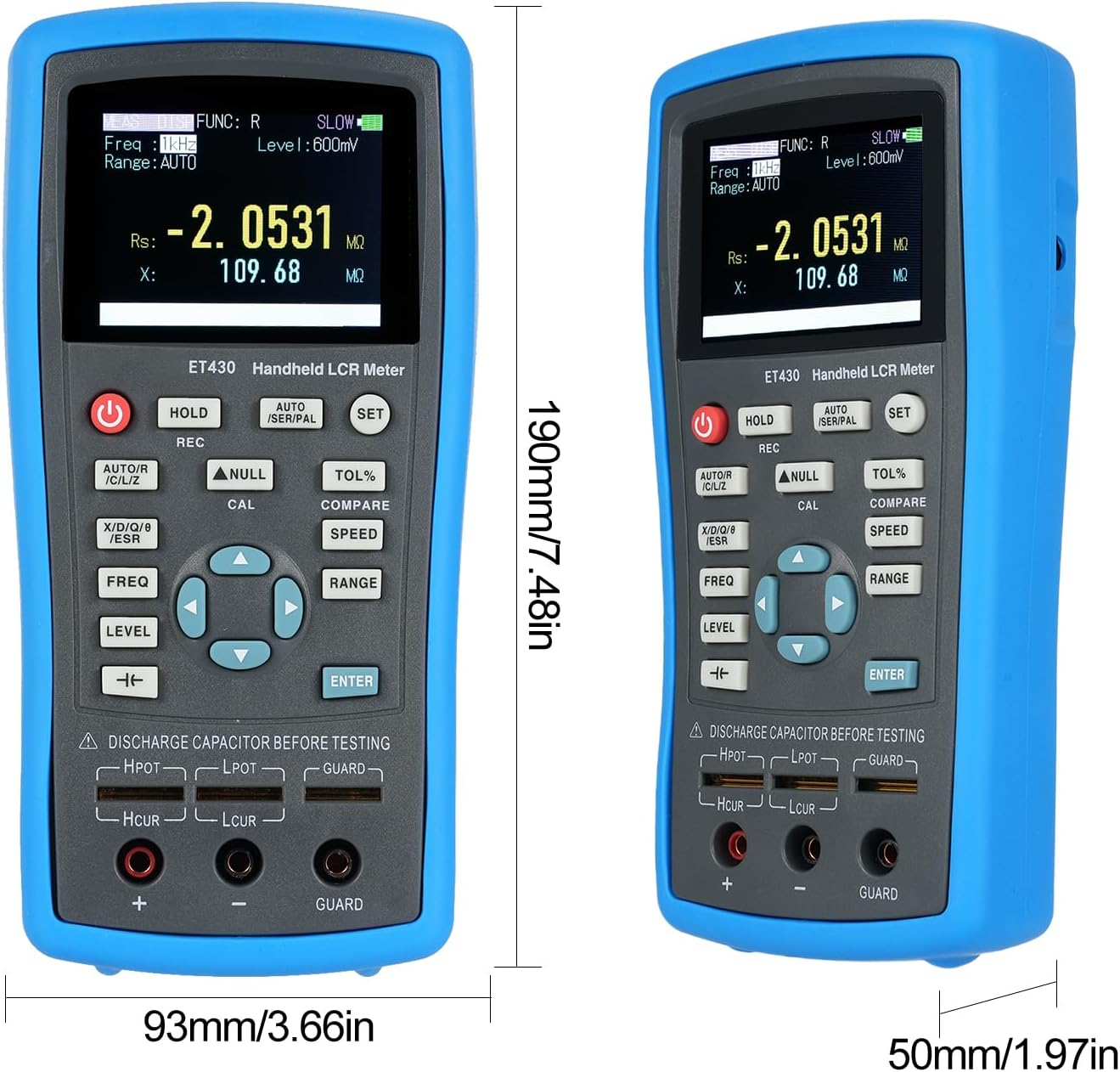

Specifications: Material: ABS Test Frequency: 100Hz, 120Hz, 1kHz, 10kHz, 40kHz, 100kHz Accuracy: 0.3% Display: 2.5" TFT LCD screen Measured Parameter: L/C/R/Z (primary), X/D/Q/θ/ (secondary) Measurement : L: 0.000μH~2000H C: 0.000pF~20.000mF R: 0.0001Ω~20.00MΩ Measuring Display Speed: 1 time/s(slow), 2 times/s(medium), 4 times/s(fast) Electrolytic acitor Mode: Yes Testing Level: 0.3Vrms, 0.6Vrms Calibration: Open/Short circuit calibration Battery: 5V, 2600mAh lithium battery Item Size: 190 * 93 * 50mm / 7.48 * 3.66 * 1.97in Item Weight: 402g / 14.18oz Package Weight: 753g / 26.58oz Package Size: 25.5 * 21 * 6.2cm / 10.04 * 8.27 * 2.44in Packing List: 1 * LCR Meter 1 * CD 1 * Short-circuit Plate 1 * Mini-USB Cable 1 * Pair of Alligator Clip Test Line 1 * Manual (English)

• A portable handheld LCR meter for measuring the parameters of inductors, acitors, resistors and other components.
• Built-in with a 5V lithium battery for power ply, which combines the convenience of a handheld instrument and good performance of a table-type one.
• Up to 100kHz of frequency measurement, and 0.6Vrms, 0.3Vrms switchable of level measurement, and the measurement accuracy can reach 0.3%.
• Its automatic can display the s in the fast, medium, or slow mode.
• Automatically select the appropriate measurement parameters according to the characteristics of the component.
