Slide-Co 171542 8 lb. Wood Sash Balance, Steel (Single Pack)
Product details
| Management number | 219353916 | Release Date | 2026/05/03 | List Price | $31.01 | Model Number | 219353916 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
This is wood window sash balance for a 8 lb. window, or 16 lbs. if one is used on both sides. This sash balance style has been used by many manufacturers of windows for a variety of decades. It fits a 3-1/4 inch by 6-3/8 inch pocket that has been mortised about 2 inch above the centerline of the window frame. It features an all steel construction, with a coil spring inside that retracts aircraft cable lifters as it offsets the weight of the window (vent). If your windows (sashes), are having problems staying up when opened, it may be that your sash balances or hardware needs to be replaced. The sash balances hold the weight of the window pane, over time, the springs can wear out or fail. Replace your sash balance for a smoother operation of your window and allow fresh air to enter your home with a window that stays open. If your windows (sashes), are having problems staying up when opened, it may be that your sash balances or hardware needs to be replaced. The sash balances hold the weight of the window pane, over time, the springs can wear out or fail. Replace your sash balance for a smoother operation of your window and allow fresh air to enter your home with a window that stays open. If your windows (sashes), are having problems staying up when opened, it may be that your sash balances or hardware needs to be replaced. The sash balances hold the weight of the window pane, over time, the springs can wear out or fail. Replace your sash balance for a smoother operation of your window and allow fresh air to enter your home with a window that stays open.
- Components are constructed of stamped steel and aircraft cable
- Comes finished in a corrosion resistant, zinc plated finish
- Installs into wooden window jamb legs of single hung and double hung vertical sliding windows
- Cutouts in jamb legs will be required as specified in installation instructions

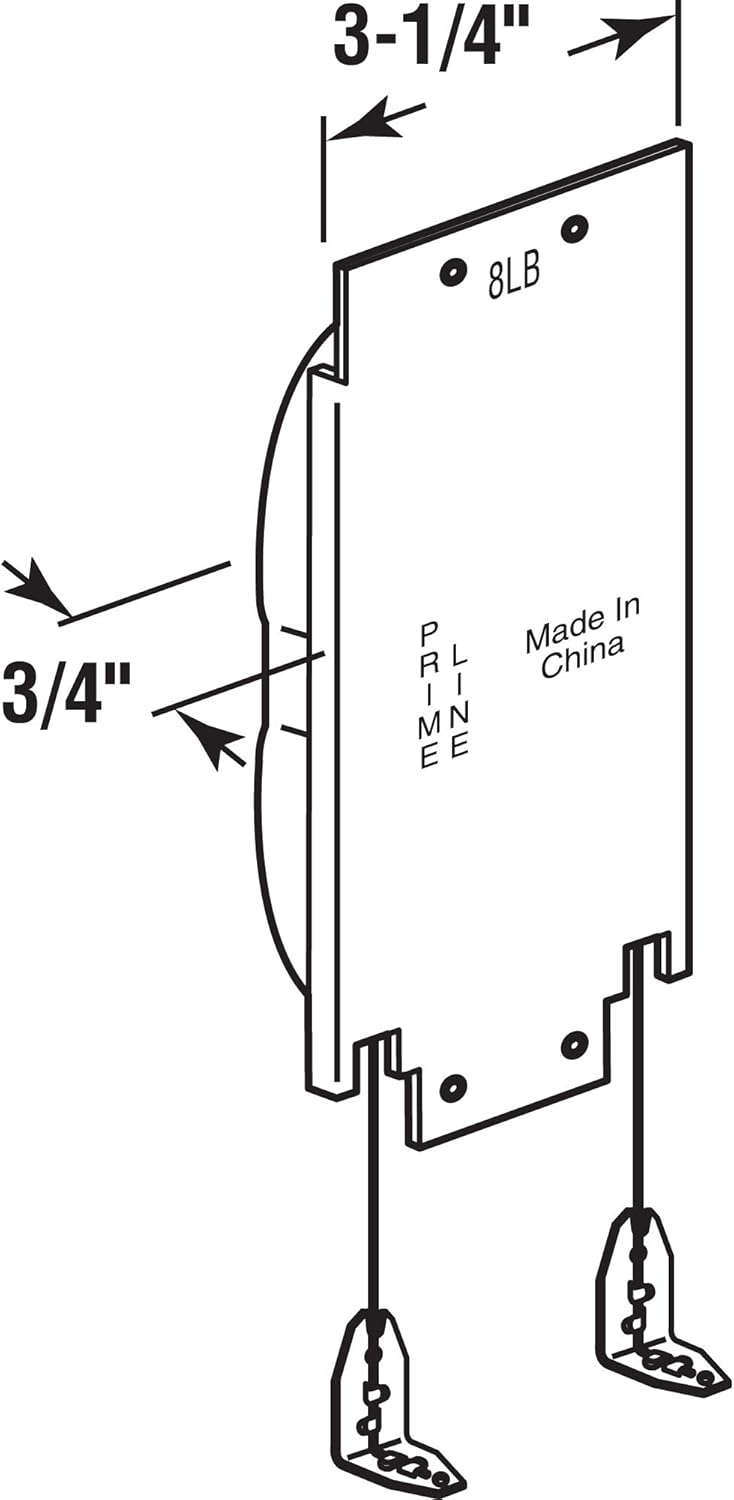

- Please refer to the line art drawing for dimensions and compare with your needs before ordering
- 8 Pound counter balance per cable
- All steel construction coil spring retraction
- Two steel cables, one for upper sash and one for lower
- For replacement of existing balance or to retrofit old style pulley and weight
- Use either one or two balances per window, 2 each #8 balances for a 16 pound sash
| UPC | 078874175421 756655432238 |
|---|---|
| Color | Zinc |
| Model | 171542 |
| Brand Name | Slide-Co |
| Unit Count | 1.0 Count |
| Form Factor | Foldable |
| Item Weight | 0.09 Kilograms |
| Part Number | 171542 |
| Display Type | Reflective |
| Manufacturer | Prime-Line Products |
| Material Type | Alloy Steel, Wood |
| Measurement Type | pounds |
| Weigh Scale Type | Balance Scale |
| Warranty Description | Goods are warranted against manufacturing defects for 1 year. In no case is Prime-Line responsible for user related damage or damage incurred during installation. Warranty is void if products are subjected to abnormal conditions, misapplication or abuse. |
| Weight Capacity Maximum | 8 Pounds |
| Recommended Uses For Product | Window balancing |
| Global Trade Identification Number | 00078874175421 |
