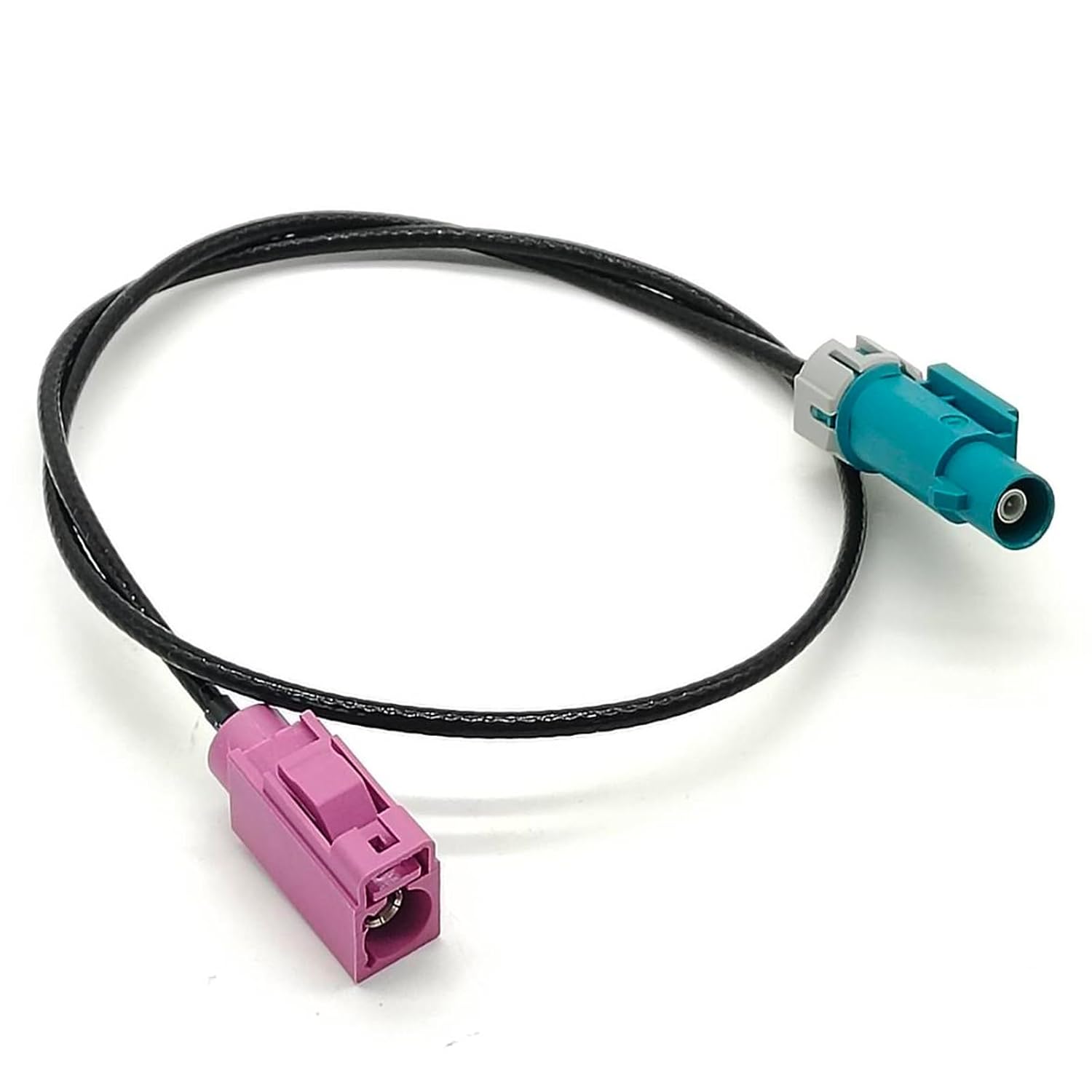

Straight Waterblue Fakra Z Plug Male Waterproof to Fakra H Jack Female Radio Vehicle Extension Cable Adapter RG316 50cm

Electrical Specifications: Frequency Range:0-6 GHz Performance Spec:SAE-USCAR-17, 18 Dielectric Withstanding Voltage (Sea Level):> 1000 VRMS VSWR DC- 200MHz:1.2 max 200-500MHz:1.35 max 500MHz-2GHz:1.4 max 2-3GHz:1.5 max 3-6GHz:1.6 max Insulation Resistance:1000 MΩ min Contact Resistance Center Contact:<20 mΩ Outer Contact:<10 mΩ Insertion Loss Spec Requirement:<0.3 dB max from DC-3 GHz DC-200MHz:<0.15 dB 200-500MHz:<0.25dB 500MHz-3GHz:<0.3 dB 3-6GHz:<.45dB Mechanical properties: Mating Durability:100 mating cycles min Plastic Housing Engagement Force Engagement :20 N Disengagement:25 N Cable Retention Force Cable Group 1:110 N Cable Group 4:180 N Coding;12 mechanical and color coding

• Fakra Cable,Fakra Z, Fakra H Connector, Male to Female,Straight,Cable
• Plastic housing with locking feature and audible clicking noise
• Minimum of 100 mating cycles;Frequency range of DC - 6 GHz
• Applications:Automotive;Global Positioning Satellite;SatelliteRadio;Bluetooth; Remote Vehicle Diagnostics;Infotainment Systems;Wireless communication; Wireless LAN.
• From the OEM Original Factory, same quality with much better price.(Can customize the line length )
