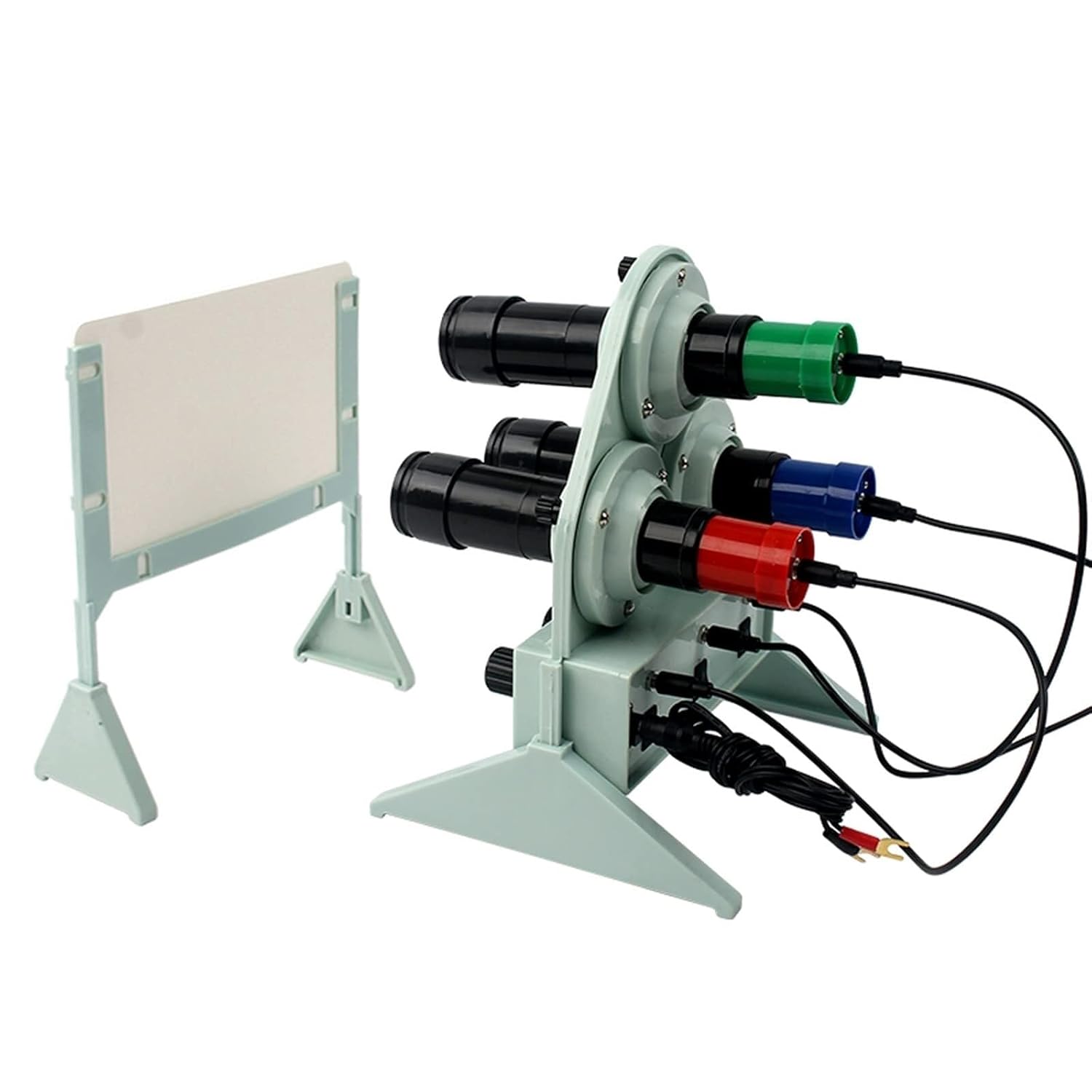

Three Primary Color Synthesis Experimenter for Synthesis of Red, Green and Blue Three-Color Light Sources Red Green and Blue Light Source Synthesis Color Physics

Product size: light tube frame width 170* total height 225mm, white screen frame width 160* total height 185mmProduct weight: about 900gPrecautions1. The power supply of the experimenter is a 6V, 0.3A DC regulated power supply, or 4 AA batteries, please do not use other power supplies.2. When connecting the power supply, first turn off the light source switch, and turn the potentiometer counterclockwise to the end (maximum resistance)3. During the experiment, first turn on the stabilized power switch, and then turn on the light source switch on the experimenter; at the end of the experiment, first turn off the light source switch, and then turn off the stabilized power switch. During the experiment, if you need to turn off or light up the light-emitting diode, please operate the light source switch, do not operate the switch of the stabilized power supply.4. If none of the three light-emitting diodes light up during the experiment, check whether the positive and negative poles of the power supply wiring are connected incorrectly, whether the power supply has output voltage, and whether the power wiring plug is in good with the socket. If one of the diodes does not light up, check the between the diode and the tube socket, check whether the between the light source wiring and the socket is good, and check whether the diode is damaged.Find answers in product info, Q&As reviews

• Structure: This instrument is mainly composed of light pipes, light pipe rack components, light intensity regulators, potentiometer knobs, light pipe rack legs, light source switches, power sockets, light source wiring, white screens, white screen racks, etc.
• Light pipe: The light pipe is formed by the sleeve connection of the diode holder, the condenser lens tube and the objective lens tube. The diode holder can rotate and expand in the condenser lens barrel
• Install the instrument: Install the support feet on the light pipe rack and the white screen respectively. The light pipe is inserted in the round hole of the light pipe holder to rotate the ball.
• Adjust the light beam emitted by the light pipe: turn on the power, light up the light-emitting diode, adjust the position of the diode holder and the condenser lens tube, so that the edge of the light spot projected on the white screen is clear.
